What Are the Parts of a Window? (Homeowner’s Guide)

Windows are an integral part of any home, allowing natural light to pour in and providing ventilation. But have you ever wondered what makes up a window? Understanding the different parts of a window can be beneficial for homeowners, whether you’re looking to perform maintenance, make repairs, or simply gain a better appreciation for the architectural elements in your home.

It’s also important to understand the functionality of both windows and doors when addressing your home needs. In this homeowner’s guide, we’ll break down the various parts of a window and shed light on their roles and significance.

What’s inside this blog:

• 14 key parts of a window
• Key features for each window part
• When to install new windows

Keep reading to learn everything you need to know about the important parts of a window!

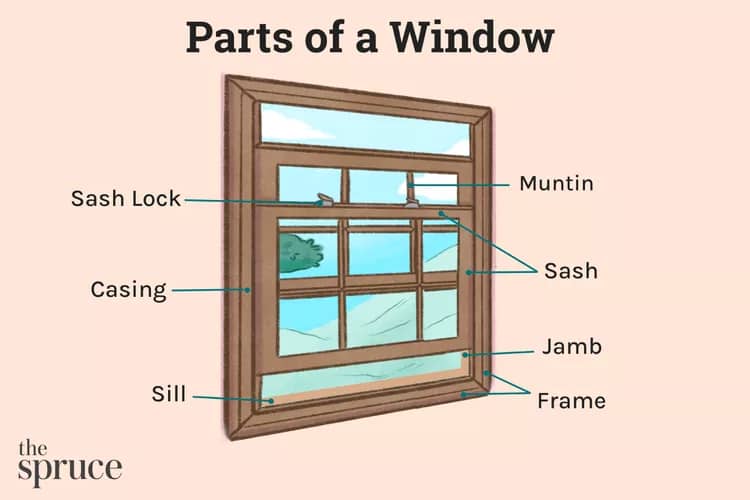

Introduction to Window Parts 🏠

Windows are more than just panes of glass in your walls; they are complex structures made up of various components that work together to provide light, ventilation, and insulation. Understanding the different parts of a window can help you appreciate their functionality and beauty.

Whether you’re planning a window project, considering replacement windows, or simply curious about window anatomy, knowing the basics can be incredibly beneficial.

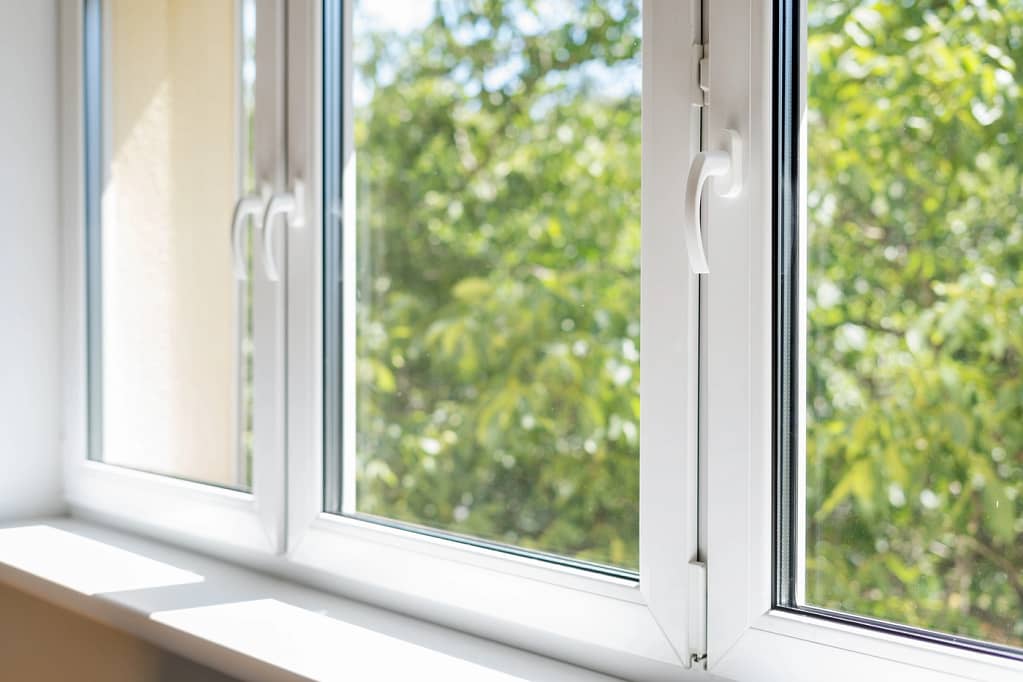

1. Frame and Sill 🪟

At the core of every window is its frame and sill. These elements provide the structural support and hold the window in place.

Key Components:

• Frame: The frame is the fixed part of the window that surrounds the glass. It can be made of various brands and materials, including wood, vinyl, aluminum, or fiberglass.
• Sill: The sill is the horizontal bottom part of the frame. It serves as a platform for the window and helps drain rainwater away from the interior. The brick mould, an exterior trim with a thicker profile, hides the gap between the window frame and the wall surface, providing a buffer between the window and the surrounding cladding.

2. Sash 🪟

The sash is the moveable part of the window that holds the glass pane. It’s what allows you to open and close the window.

Key Components:

• Upper Sash: In double-hung windows, the upper sash is the top part of the window that can be opened or closed.
• Lower Sash: The lower sash is the bottom part of the window that also opens and closes in double-hung windows.

3. Glass Pane 🪟

The window pane is, of course, the transparent or translucent component of the window that lets light in and provides a view of the outside.

Key Components:

• Single Pane: Some older windows have a single layer of glass.
• Double Pane: Most modern windows have two layers of glass with a gap in between, known as double-pane or insulated glass, which provides better insulation and soundproofing.

4. Grilles or Mullions 🪟

Grilles (sometimes called muntins) are decorative elements that divide the glass into smaller sections, creating patterns or grids. They are often used to enhance the aesthetic appeal of a window.

Key Components:

• Grille Patterns: Grilles can come in various patterns, such as colonial, prairie, or custom designs, depending on your preference.

5. Sash Locks and Fasteners 🪟🔒

Sash locks and fasteners are mechanisms that secure the window in a closed position.

Key Components:

• Sash Lock: A sash lock is a simple latch that holds the window sash in place when engaged.
• Fasteners: Some windows feature more advanced fasteners, such as cam locks or sliding locks, for enhanced security.

6. Weatherstripping 🪟🌧️

Weatherstripping is a material used to seal gaps and prevent air and moisture from entering your home.

Key Components:

• Felt Strips: These are adhesive strips made of felt or fabric and are commonly used in older windows.
• Foam Strips: Modern windows often use foam weather stripping for better insulation. This helps to increase energy efficiency by maintaining a stable indoor temperature and reducing the need for heating and cooling.

7. Jamb 🪟📏

The window jamb consists of the vertical sides of the window frame, known as the side jambs, and the horizontal sides, which help hold the sash in place and provide stability.

Key Components:

• Head Jamb: The horizontal top part of the frame.
• Side Jambs: The vertical parts of the frame on the left and right sides.

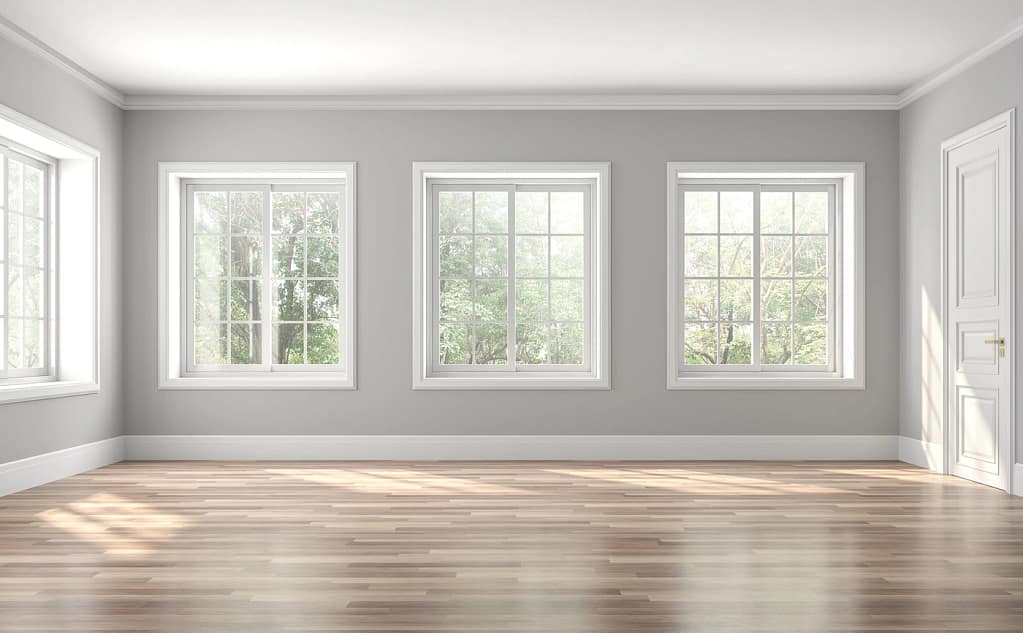

8. Casing 🪟🎨

The casing, also known as trim or molding, is the decorative frame that surrounds the window on the interior side.

Key Components:

• Interior Casing: The casing on the inside of the window often matches the overall interior design of the room.
• Exterior Casing: The casing on the outside serves both functional and aesthetic purposes, protecting the window from the elements while enhancing curb appeal. Certain materials used for exterior casing are low maintenance, providing durability and simplifying upkeep.

9. Window Screens 🪟🪟

Window screens are mesh panels that fit into the window frame and keep insects and debris out while allowing fresh air to flow in.

Key Components:

• Screen Material: Screens can be made of various materials, including fiberglass, aluminum, or specialty materials designed to reduce UV rays or provide privacy.
• Screen Frames: Screens have frames that hold the mesh in place and can be removed for cleaning or storage. A fixed panel, on the other hand, is a stationary window pane that is inoperable, typically found in single-hung windows.

10. Hardware and Operators 🪟🔧

The hardware and operators are the mechanisms that enable the casement window to open and close. They vary depending on the type of window.

Key Components:

• Crank Handle: Used in casement windows, a crank handle is rotated to open or close the window.
• Sash Pull: Double-hung windows often have sash pulls or lifts to assist in raising or lowering the sashes.

11. Jamb Liner 🪟📐

In some window types, like double-hung and sliding windows, a jamb liner is a part that aids in the smooth operation of the sashes.

Key Components:

• Spring-Loaded Balancers: Jamb liners often contain spring-loaded balancers that help counterbalance the weight of the sashes, making them easier to open and close. It is crucial that components like Window Opening Control Devices (WOCDs) are factory applied to ensure they are integrated into the window design during manufacturing, which is necessary for proper function and adherence to building code requirements.

12. Drip Cap 🪟💧

A drip cap is a small, angled piece of material typically installed above the exterior casing to direct rainwater away from the window and prevent moisture from seeping into the wall. Drip caps protect both windows and doors from water infiltration.

Key Components:

• Water Diversion: Drip caps are designed to deflect rainwater and prevent it from running down the wall or pooling on the window sill.

13. Window Latch 🪟🔐

Window latches, also known as window locks or catches, are mechanisms that secure the window in a closed position.

Key Components:

• Single-Point Latch: These are simple latches that engage with a strike plate to secure the window.
• Multi-Point Locking Systems: Some windows have more advanced multi-point locking systems for added security. In double-hung windows, the check rail is the point where the bottom rail of the top sash and the top rail of the bottom sash intersect, and it is significant for positioning the sash lock.

14. Window Well 🪟🕳️

Window wells are typically found around basement windows and serve to provide access to the window, as well as protect it from soil and moisture.

Key Components:

• Window Well Cover: A transparent or solid cover can be placed over the window well to keep debris and water out. Mullions are structural elements that join two or more windows together, connecting adjacent window units effectively.

Window Types 🪟🔄

Windows come in various styles, each with its unique features and benefits. Here are some common window types you might consider for your home:

• Double-Hung Windows: These windows feature two sashes that move up and down, allowing for versatile ventilation options. The top sash can be lowered, and the bottom sash can be raised, making them a popular choice for many homeowners.
• Casement Windows: Hinged at the side, casement windows open outward with the turn of a crank handle. They provide excellent ventilation and unobstructed views, making them ideal for areas where you want to maximize airflow.
• Picture Windows: These large, fixed windows do not open but offer expansive views and allow plenty of natural light to flood into your home. They are perfect for framing beautiful outdoor scenery.
• Single-Hung Windows: Similar to double-hung windows, but only the bottom sash is operable. They are commonly found in older homes and are often chosen for their classic look.
• Sliding Windows: These windows slide horizontally along a track, making them easy to operate and clean. They are a great option for rooms with limited space.

By understanding the different window types, you can select the perfect window for each room in your home, balancing functionality, aesthetics, and energy efficiency.

Window Energy Efficiency 🌿💡

Energy-efficient windows are essential for maintaining a comfortable indoor environment and reducing energy costs. Several window parts contribute to overall energy efficiency:

• Glass Panes: Double or triple-pane glass windows provide better insulation than single-pane windows. The space between the panes is often filled with inert gas, such as argon, to further reduce heat transfer.
• Low-E Coatings: Low emissivity (Low E) coatings on window glass reflect heat back into the room during winter and keep it out during summer, improving thermal performance.
• Weatherstripping: Proper weatherstripping around the window frame and sash helps seal gaps, preventing drafts and enhancing energy efficiency.
• Window Frames: The material of the window frame also plays a role in energy efficiency. Vinyl, fiberglass, and wood frames offer good insulating properties and can help reduce heat transfer.

By choosing energy-efficient windows and understanding how each component contributes to their performance, you can significantly improve the overall energy efficiency of your home, leading to lower utility bills and a more comfortable living space.

Window Installation and Maintenance 🛠️🔧

Proper installation and regular maintenance are crucial for ensuring your windows perform well and last for years. So when it’s time to install new windows, it’s important to get advice from a few professional window installers to ensure proper fit and framing.

You’ll also want to clean windows regularly to maintain the glass, inspect the seals and weatherstripping to maintain energy-efficient windows, and keep the moving parts of your windows with the proper lubricant. By following general installation and maintenance tips, you can ensure your windows remain in excellent condition, providing optimal performance and enhancing the beauty and comfort of your home.

Understanding the Window Anatomy for Homeowners 🏡🧐

Now that you’re well-acquainted with the various parts of a window, you can approach window-related projects and maintenance with more confidence and knowledge. Understanding window parts and terminology is crucial to avoid confusion when shopping for replacement windows or discussing window projects.

Whether you’re looking to replace a sash, upgrade your hardware, or simply clean and maintain your windows, understanding their anatomy is a valuable asset. Take pride in your newfound expertise and keep those windows shining and functional for years to come!
